In this article, we will explore how authentication tokens in applications integrated with Okta Workforce Identity Cloud (WIC) can be protected from misuse, using a relatively new OAuth 2.0 extension Demonstrating Proof of Possession (DPoP).

DPoP overview

Regular OAuth 2.0 tokens are vulnerable to theft and impersonation. They are just bearer tokens that can be used by any one just like the legitimate client. This can result in token stealing, token replay and account takeover attacks.

The goal of DPoP is to cryptographically bind an access token to a particular client to which the token has been issued. It enables the client to demonstrate proof-of-possession of the access token. Every API or resource accessed by the client, can then demand for the proof before granting access. In effect, the access token becomes locked to the client it has been generated for. The token is not useful elsewhere, for example when an attacker tries to call an API using the stolen token.

DPoP works at the application layer and has the following basic flow -

At a high level -

• The client generates a private-public key pair.

• Then the client creates a JSON Web Token (JWT) embedding the generated public key, and signs the JWT with the corresponding private key. Only the client has access to the private key. The signed JWT is customarily called a DPoP proof.

• While making an OAuth 2.0 token request to the authorization server, the client passes the DPoP proof along with the standard token request parameters.

• The authorization server validates the DPoP proof using the supplied public key inside the DPoP proof JWT.

• While generating the access token, the authorization server embeds the public key inside the token itself and finally issues the token to the client.

• When the client calls a resource (API) using the token, it passes both the DPoP proof and the access token to the resource server.

• The resource server validates the DPoP proof by using the embedded public key inside the access token. That way the resource server confirms that the sender of the DPoP proof and the owner of the access token are the same client. The resource server finally grants access to the intended resource.

DPoP with WIC

The following diagram explains how DPoP flow is implemented with WIC -

Highlights

• DPoP is supported in different types of OpenID Connect(OIDC) applications - Web, SPA, native and service applications.

• Once an OIDC application is enabled for DPoP, then it cannot be used to generate a regular bearer token.

• DPoP support for service applications can provide additional protections for machine-to-machine authentication scenarios and IoT integration at scale.

• DPoP proof is passed as an HTTP header parameter DPoP. Okta mandates use of this header value when calling the OAuth2.0 /token endpoint that generates refresh and/or access tokens.

• While calling an API with a DPoP bound access token, the value for the HTTP header Authorization needs to start with DPoP instead of Bearer.

• DPoP bound token generation needs 2 consecutive calls to the /token endpoint.
  • The first call causes an error response from Okta bearing a nonce value to be included in the DPoP proof during the next call to the /token endpoint.
  • Okta refreshes the nonce value every 24 hours.
  • Final DPoP proof to the /token endpoint also needs to include a one time use random string in the claim jti. The same jti value can not be reused in subsequent DPoP proofs.

• DPoP proof needs to be passed when a refresh token is used to generate a new access token.

• DPoP proof validation needs to be done offline at the resource server. The access token can however be validated offline or online with OAuth 2.0 /introspect endpoint.

DPoP protection for Okta API

Okta APIs can be protected with scoped DPoP bound access tokens. When any Okta management API is called, Okta acts like a resource/API server.

• While calling an Okta API, the DPoP proof must contain the Base64 encoded SHA-256 hash of the issued access token in the claim ath. While it is always the best practice to use the ath claim when calling any (non-Okta) API, Okta resource server mandates its use.

Integrate application with WIC using DPoP

Let’s look at how an application can be integrated with WIC leveraging DPoP bound tokens.

Generate DPoP bound token

In order to generate a DPoP bound access token, consider the following steps -

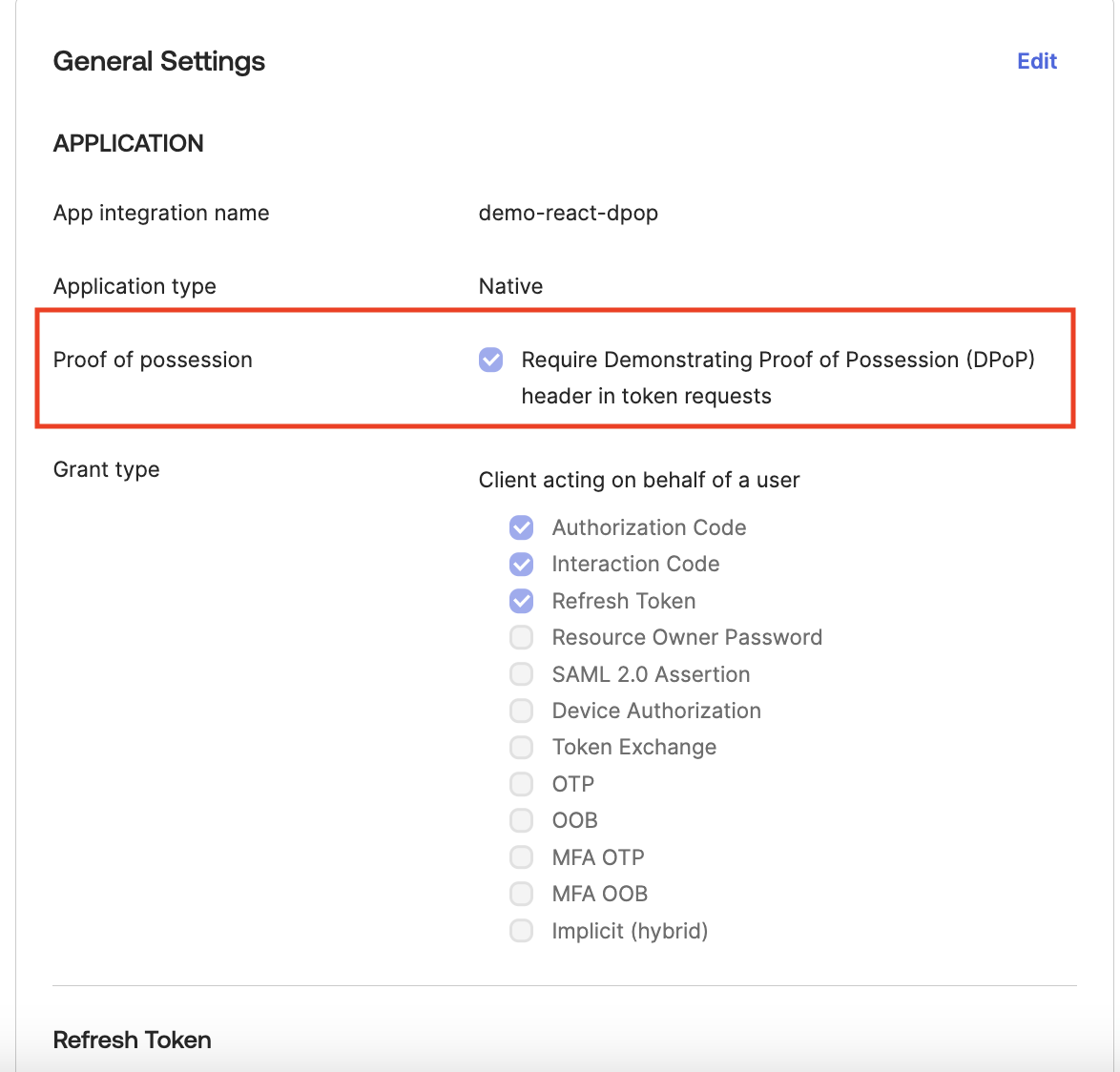

• Configure an OIDC application in Okta with standard settings and additionally enable DPoP.

• From the application (client) code, generate a public/private key pair for use with DPoP in the format of JSON Web Key (JWK). Extract the private key from the JWK in PEM format and the public key in JSON format.

NodeJS example

var jose = require('node-jose');

dpopKeystore = jose.JWK.createKeyStore();
  dpopKeystore.generate('RSA', 2048, {alg: 'RS256', use: 'sig' })
  .then(result => {
    publicKey  = result.toJSON();
    privateKeyPEM  = result.toPEM(true);
    publicKeyPEM  = result.toPEM(false);
    ........

• Generate a JSON Web Token (JWT) and sign the JWT with the PEM formatted private key. The signed JWT would be used as the DPoP proof HTTP header.

  • Specify the URL of the token endpoint of Okta’s Org or custom authorization server in the htu claim.

  • Set the value POST for the htm claim to indicate that the token endpoint is called via HTTP POST.

  • Specify dpop+jwt as value for the header attribute typ

  • Include the public key JSON in the header attribute jwk

NodeJS example

var jwt = require('jsonwebtoken');

const claims = {
  htm: "POST",
  htu: "https://{yourOktaDomain}.com/oauth2/default/v1/token",
}

dpopJWK= jwt.sign(claims,privateKeyPEM,
            {
              algorithm: 'RS256',
              header:
                {
                  typ: 'dpop+jwt',
                  jwk: publicKey
                }
            }
          );

• When the WIC /token endpoint is called by the client, add the HTTP request header DPoP holding the DPoP proof.

• At this point, Okta would observe that there is no nonce value present inside the signed JWT. It would return an error to the application with a dpop-nonce HTTP header to use it as nonce value.

• Extract the nonce from the HTTP response header

React example

fetch('https://{yourOktaDomain}.com/oauth2/default/v1/token', {
        method: 'post',
          headers: {'Accept':'application/json', 'Content-Type':'application/x-www-form-urlencoded',  'DPoP':dpopheader},
          body: new URLSearchParams({
            client_id: currentParams.clientId,
            redirect_uri: currentParams.redirectUri,
            grant_type: 'authorization_code',
            code_verifier:currentParams.codeVerifier,
            code: queryParameters.get("code")
          })
        })
        .then(res => {
            const nonce = res.headers.get("dpop-nonce");

• Generate a new DPoP proof HTTP header, this time with the nonce embedded in the claim. Also add a random value as jti claim. The jti claim ensures that the DPoP proof is used only once. Once Okta processes a request with this DPoP proof, it will automatically reject its subsequent use.

NodeJS example

var claims = {
      htm: "POST",
  	  htu: sampleConfig.resourceServer.tokenHtu,
      nonce: req.body.nonce,
      jti: crypto.randomBytes(20).toString('hex')
    }
 dpopJWKWithNonce= jwt.sign(claims,privateKeyPEM,
            {
              algorithm: 'RS256',
              header:
                {
                  typ: 'dpop+jwt',
                  jwk: publicKey
                }
            }
          );
 res.json({
  dpopheader: dpopJWKWithNonce
});

• Okta would generate and return an access token and bind the token to the client’s public key. It does this with the claim cnf which contains a sub-claim jkt holding the SHA-256 thumbprint of the public key.

{
  "ver": 1,
  .....
  "cnf": {
    "jkt": "2HR2BW5-tan1aI6yIPHVOHwirAy4kQGWULoQHKUO0s4"
    },
   ......
  "sub": "user@example.com"
}

Call protected API

After the client receives DPoP bound token from Okta, it can use the token to call a protected API -

• First create a new DPoP proof for the resource server.

  • The JWT claim needs to have appropriate HTTP method (htm claim) and intended API to call (htu claim).

  • It is recommended that a claim ath is included that contains the Base64 encoded hash of the bound access token. This claim is mandatory when the intended resource is an Okta API.

  • Sign the JWT with the same private key PEM generated by the client.

NodeJS example

var claims = {
    htm: "GET",
    htu: "https://example.com/api/example",
    ath: "aI6yIPHVOHwirAy4kQGWULoQHKUO0s4"
  }
   dpopJWKForResource= jwt.sign(claims,privateKeyPEM,
              {
                algorithm: 'RS256',
                header:
                  {
                    typ: 'dpop+jwt',
                    jwk: publicKey
                  }
              }
            );
   console.log("---DPoP Proof - for Resource ---");
   console.log(dpopJWKForResource);
   res.json({
    dpopheader: dpopJWKForResource
  });

• Call the API and include both the DPoP proof and DPoP bound token in HTTP headers.

React example

fetch("https://example.com/api/example", {
            headers: {
              Authorization: `DPoP ${dpopAccessToken}`,
              DPoP: `${responseJson.dpopheader}`,
            },
          })

Verify DPoP token at resource server

If the resource server is Okta itself, all the standard DPoP verification automatically is carried out by Okta before granting access and executing the Okta API.

For other API servers the take the following verification steps before granting access to the API -

• Verify that a DPoP header is present

NodeJS example

const dPoPHeaderValue = req.headers.dpop;
  if (!dPoPHeaderValue) {
    return res.status(401).send("Missing DPoP header");
  }

• Extract the public key from the DPoP header

NodeJS example

const jwtHeader = jwtDecode(dPoPHeaderValue, { header: true });
  let jktFromDPoPHeader;
  try {
    const publicKey = await jose.JWK.asKey(
      JSON.stringify(jwtHeader.jwk),
      "json"
    );

• Verify the signature of the DPoP JWT using the public key and algorithm values present in the JWT header.

NodeJS example

const verifiedJwt = await jose.JWS.createVerify(publicKey, {
      algorithms: [jwtHeader.alg],
    }).verify(dPoPHeaderValue);

• Verify that the htu and htm claims are in the DPoP JWT payload and match with the current API request HTTP method and URL.

NodeJS example

const payload = JSON.parse(verifiedJwt.payload.toString());
if (payload.htm !== req.method) {
  return res.status(400).send("Invalid `htm` claim in DPoP JWT");
}
if (payload.htu !== `${req.protocol}://${req.get("host")}${req.url}`) {
  return res.status(400).send("Invalid `htu` claim in DPoP JWT");
}

• If ath claim is present then hash and Base64-encode the access token and match with the ath claim.

• Extract the DPoP-bound access token from the Authorization header, verify the JWT, and extract the claims. You can also use the /introspect endpoint to verify and extract the access token claims.

NodeJS example

const OktaJwtVerifier = require('@okta/jwt-verifier');

const oktaJwtVerifierDPOP = new OktaJwtVerifier({
  clientId: sampleConfig.resourceServer.oidcdpop.clientId,
  issuer: sampleConfig.resourceServer.oidcdpop.issuer,
  assertClaims: sampleConfig.resourceServer.assertClaimsDPOP
});


const authHeader = req.headers.authorization || "";
  const match = authHeader.match(/DPoP (.+)/);
  if (!match) {
    return res.status(401).send("Invalid DPoP authorization");
  }

const accessTokenResponse = await oktaJwtVerifierDPOP.verifyAccessToken(
      accessToken,
      audience
    );

• Calculate the jkt (SHA-256 thumbprint of the public key as obtained from the DPoP header)

NodeJS example

jktFromDPoPHeader = jose.util.base64url.encode(
      await publicKey.thumbprint("SHA-256")
    );

• Validate the token binding by comparing the jkt sub-claim from the access token with the calculated jkt.

NodeJS example

 if (jktFromDPoPHeader === accessTokenResponse.claims.cnf.jkt) {
      next();
    } else {
      return res.status(401).send("Invalid DPoP key binding");
    }

Summary

Okta supports protecting OAuth 2.0 tokens (access token and refresh token) by binding them to the client’s private key. The access token then can be used to access both Okta APIs and external APIs securely.
